1. An Upstream Open Reading Frame Modulates Ebola Virus Polymerase Translation and Virus Replication

Reed S. Shabman, Thomas Hoenen, [...], and Christopher F. Basler

Additional article information

1.1. Abstract

Ebolaviruses, highly lethal zoonotic pathogens, possess longer genomes than most other non-segmented negative-strand RNA viruses due in part to long 5′ and 3′ untranslated regions (UTRs) present in the seven viral transcriptional units. To date, specific functions have not been assigned to these UTRs. With reporter assays, we demonstrated that the Zaire ebolavirus (EBOV) 5′-UTRs lack internal ribosomal entry site function.

However, the 5′-UTRs do differentially regulate cap-dependent translation when placed upstream of a GFP reporter gene. Most dramatically, the 5′-UTR derived from the viral polymerase (L) mRNA strongly suppressed translation of GFP compared to a β-actin 5′-UTR.
The L 5′-UTR is one of four viral genes to possess upstream AUGs (uAUGs), and ablation of each uAUG enhanced translation of the primary ORF (pORF), most dramatically in the case of the L 5′-UTR. The L uAUG was sufficient to initiate translation, is surrounded by a “weak” Kozak sequence and suppressed pORF translation in a position-dependent manner. Under conditions where eIF2α was phosphorylated, the presence of the uORF maintained translation of the L pORF, indicating that the uORF modulates L translation in response to cellular stress.

 To directly address the role of the L uAUG in virus replication, a recombinant EBOV was generated in which the L uAUG was mutated to UCG. Strikingly, mutating two nucleotides outside of previously-defined protein coding and cis-acting regulatory sequences attenuated virus growth to titers 10–100-fold lower than a wild-type virus in Vero and A549 cells. The mutant virus also exhibited decreased viral RNA synthesis as early as 6 hours post-infection and enhanced sensitivity to the stress inducer thapsigargin. Cumulatively, these data identify novel mechanisms by which EBOV regulates its polymerase expression, demonstrate their relevance to virus replication and identify a potential therapeutic target.

1.2. Author Summary

Filoviruses (Ebola and Marburg viruses) are emerging zoonotic pathogens that cause lethal hemorrhagic fever in humans and have the potential to be employed as bioterrorism agents. Currently, approved therapeutics to treat filovirus infections are not available and new treatment strategies could be facilitated by improved mechanistic insight into the virus replication cycle. Compared to other related viruses, filovirus messenger RNAs have unusually long 5′ untranslated regions (UTRs) with undefined functions. In the Zaire ebolavirus (EBOV) genome, four of its seven messenger RNAs have 5′-UTRs with a small upstream open reading frame (uORF). We found that a uORF present in the EBOV polymerase (L) 5′-UTR suppresses L protein production and established a reporter assay to demonstrate that this uORF maintains L translation following the induction of an innate immune response; a phenomenon observed with several uORF-containing cellular messenger RNAs. The presence of the uORF is important for optimal virus replication, because a mutant virus lacking the upstream reading frame replicates less efficiently than a wildtype virus, an attenuation which is more pronounced following the induction of cellular stress. These studies define a novel mechanism by which filovirus upstream open reading frames modulate virus protein translation in the face of an innate immune response and highlight their importance in filovirus replication.

2. Introduction

Ebolaviruses (EBOVs) and marburgviruses (MARVs) comprise the filoviruses, a family of enveloped, nonsegmented negative-sense (NNS) RNA viruses [1]. These zoonotic pathogens, which are associated with increasingly frequent outbreaks in humans, cause lethal hemorrhagic fever and are of concern as potential bioterrorism agents [2]. Currently, approved therapeutics to treat these infections are not available. New treatment strategies could be facilitated by improved insight into mechanisms regulating filovirus replication and gene expression.

The genome of Zaire ebolavirus (EBOV), the most deadly species of EBOV, is 18,959 nucleotides (nts) in length and contains seven transcriptional units that direct synthesis of at least nine distinct primary translation products:

1.  the nucleoprotein (NP),
2. virion protein (VP) 35,
3. VP40,
4.  glycoprotein (GP),
5. soluble glycoprotein (sGP),
6. small soluble glycoprotein (ssGP),
7. VP30,
8.  VP24 and
9. the large (L) protein.L is the catalytic subunit of the polymerase complex.

 Similar to other NNS RNA viruses, EBOVs encode a multi-protein complex to carry out replication and transcription.
In the case of EBOV, viral RNA synthesis requires the viral NP, VP35, VP30 and L proteins.

Transcription of filovirus mRNAs is presumed to occur as in other NNS viruses, where there is a gradient of viral mRNAs with the abundance of each mRNA transcript decreasing as the polymerase transcribes towards the 5′ end of the template [3]–[6].

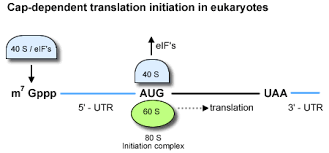

Each EBOV mRNA is presumed to be efficiently modified with a 5′-7-methylguanosine (m⁷G) cap and a 3′ p(A) tail [6]–[8].

Viruses rely on the host cell for translation of their mRNAs.

 A common innate antiviral mechanism is to globally inhibit protein synthesis through the phosphorylation of the alpha subunit of the factor eukaryotic initiation factor 2 (eIF-2α∼P) (reviewed in [9], [10]). In the absence of eIF-2α∼P, a complex consisting of eIF2, GTP, and a methionine-tRNA binds to a 40S ribosomal subunit to form the 43S preinitiation complex. The 43S subunit, in complex with additional initiation factors, binds to a 5′-m⁷G cap on an mRNA and scans the 5′-untranslated region (UTR) downstream to a start codon where translation initiation occurs [11].
 When virus infection induces eIF2α∼P, eIF2-GTP levels decrease and translation initiation is impaired due to decreased recruitment of the initiator methionine tRNA [12]–[14]. eIF-2α∼P and subsequent inhibition of cap-dependent translation is regulated by several kinases including PKR, a protein that is induced by type I interferon (IFN-α/β) and activated by viral dsRNA [15], [16].

Multiple RNA viruses have devised strategies to circumvent host cell translation control.
A common example would be viral 5′-UTRs that possess an internal ribosomal entry site (IRES) which allows translation of viral RNA without a 5′-m⁷G cap, thereby permitting translation of proteins in a cell where cap-dependent translation is impaired [9], [10], [17]. Notably, NNS RNA viruses have not been demonstrated to encode IRESes. Furthermore, the presence on each EBOV mRNA of a 5′-(m⁷G) cap and a 3′ p(A) tail [6]–[8], suggests that they are predominately translated by a cap-dependent mechanism.
Another strategy is employed by vesicular stomatitis virus (VSV), the prototype NNS RNA virus, which induces preferential translation of its own mRNAs over cellular mRNAs before eIF2α∼P occurs, triggering a global inhibition of host cell protein synthesis [18]–[21].

 While similar to VSV in genetic organization, filoviruses modulate cellular translation in distinct ways. In addition to blocking IFN-α/β production and signaling pathways in infected cells [1], [22]–[30], EBOV also impairs PKR activation in HEK293 cells.
 In contrast to VSV, global inhibition of host protein synthesis during infection has not been reported, although in vitro studies suggest that VP40 might downregulate host cell expression [19], [31]–[33]. However, in persistently infected mouse cells EBOV has been shown to induce PKR∼P and eIF2α∼P, and reducing eIF2α∼P in these cells reactivated virus replication [34]. Despite these observations, the mechanisms by which filoviruses may regulate viral mRNA translation in the absence and presence of eIF2α∼P is not completely understood.

A characteristic of filovirus genomes is that they have long 5′- and 3′-UTRs relative to other NNS viruses [3], [5], [35], [36]. Our studies specifically focused on the 5′-UTRs of the seven EBOV mRNAs, since 5′-UTRs are critical for translation initiation. Four of the seven mRNAs contain small alternate upstream open reading frames (uORFs), yet their significance remains uncharacterized. Interestingly, uORFs are a common feature of cellular mRNAs and modulate translation of a primary ORF (pORF) by decreasing the number and/or efficiency of scanning ribosomes to reinitiate at the start codon of the pORF [37]–[42]. Multiple factors contribute to the frequency of translation initiation at a uAUG versus a pAUG. These include the strength of the Kozak consensus sequence surrounding the uAUG, where A/Gcc AUG G is considered an optimal sequence.
 Furthermore, the intercistronic space between the uORF and the pAUG, and the phosphorylation status of eIF-2α [38], [39], [43]–[45] determine whether translation occurs at a uAUG or pAUG. In the absence of eIF-2α∼P, cap-dependent translation is efficient allowing for higher rates of ribosome initiation at the uORF [11]. During conditions of enhanced eIF2α∼P, translation initiation is impaired causing a ribosome to scan past the uAUG and initiate at the pAUG. Consequently, under conditions of cell stress, eIF2α∼P promotes translation initiation at the pORF of select mRNAs possessing uORFs (e.g. ATF4, CHOP, GCN2 mRNAs) [12], [43], [46], [47].

In this study, we characterized how the EBOV 5′-UTRs modulate translation. Mutating any of the four uAUGs present in the EBOV genome enhances translation at the corresponding pORF. The most dramatic effect was with the L gene where the L uAUG can potently suppress pORF translation; however, in response to eIF2α∼P, the L uAUG maintains L translation. Modulating viral polymerase levels is biologically significant since ablating the L uORF in a recombinant EBOV reduces viral titers 10–100-fold in cell culture, severely impairs viral RNA synthesis, and functions to maintain virus titers in cells treated with stress inducing agents. These data suggest that a uORF in the EBOV L mRNA regulates polymerase expression in response to the status of the cellular innate immune response and is required for optimal virus replication.

3. Results

3.1. Ebola virus 5′-UTRs do not exhibit IRES activity

To our knowledge, there is no NNS RNA virus with demonstrated IRES activity. However, EBOV 5′-UTRs are long, compared to those of most other NNS RNA viruses, ranging between 80–460 nucleotides, and are predicted to possess secondary structures [5] (and Figure S1). Therefore, we tested if any of the EBOV 5′-UTRs are able to promote cap-independent, internal translation initiation.

We designed a bicistronic reporter in the mammalian expression plasmid pCAGGS where the firefly luciferase ORF is followed by a multiple cloning site (MCS) and then by Renilla luciferase (Figure 1A). Each of the EBOV 5′-UTRs and the EMCV IRES were placed within the MCS, and these constructs were transfected into 293T cells. Eighteen hours post transfection, cells were harvested and subjected to a dual luciferase reporter assay. The EMCV IRES was able to drive cap-independent Renilla luciferase expression. However, none of the EBOV 5′-UTRs allowed detectable internal translation initiation as indicated by the Renilla luciferase reporter (Figure 1B). Furthermore, a NP 5′-UTR-GFP reporter mRNA lacking a m⁷G cap reduced GFP levels by over 90% as compared to a capped version of the same mRNA (data not shown). These data indicate that the EBOV 5′-UTRs do not function as IRESes and suggest that in infected cells they are translated by a cap-dependent mechanism, consistent with the capped-nature of EBOV mRNAs [6]–[8].

Figure 1

The 5' UTRs of EBOV do not function as internal ribosome entry sites.

3.2. EBOV 5′-UTRs modulate translation of a downstream GFP reporter

To test the role of EBOV 5′-UTRs in the context of cap-dependent translation, we transfected equal amounts of in vitro transcribed mRNAs in which individual EBOV 5′-UTRs were placed upstream of the GFP ORF (Figure 2A).


GFP was used to quantify the effects of each 5′-UTR on translation, because it was previously described to be a sensitive reporter with a large dynamic range suitable for translation assays [48]. As a control, we also transfected an mRNA construct with a β-actin 5′-UTR upstream of GFP (Figure 2A). The in vitro transcribed mRNAs were quantified by qRT-PCR. Equivalent copy numbers of each mRNA were transfected into 293T cells. At 2.5 hours post transfection, cells were harvested and the mean fluorescence intensity (M.F.I.) of the GFP positive population was quantified by flow cytometry and normalized to the M.F.I. of the β-actin 5′-UTR control (Figure 2B). Figure 2B summarize these data which are graphed from left to right according to the order of the genes as they appear in the viral genome. The NP, VP35, VP40 and VP30 5′-UTRs resulted in GFP expression comparable to the β-actin 5′-UTR construct. The GP and VP24 5′-UTRs modestly, but reproducibly, enhanced GFP expression relative to the β-actin control. qRT-PCR of RNA isolated from the transfected 293T cells in Figure 2C demonstrated comparable levels of GFP mRNA in each group at the time of the analysis, suggesting that any differences in GFP expression are due to differences in translation.

 We also transfected primary human monocyte-derived dendritic cells (DCs), because DCs are important targets of EBOV infection in vivo [49] and analyzed GFP expression. In DCs, the GFP expression profile was similar to that observed in 293T cells (Figure 2D). In contrast to the other EBOV 5′-UTRs, the L 5′-UTR dramatically suppressed GFP expression in both 293T cells and DCs compared to the β -actin 5′-UTR (Figure 2B and D, the L bars are highlighted in gray). Representative histograms of flow cytometry data in each cell line are depicted in Figure 2E and 2F, displaying the effect of the L 5′-UTR mediated suppression of GFP compared to the β-actin control 5′-UTR.

Figure 2

A screen of EBOV 5' UTRs demonstrates that the polymerase (L) 5'-UTR suppresses GFP expression.

3.3.   uAUGs present in the 5′-UTRs of the VP35, VP30, VP24 and L mRNA modulate translation initiation at the pAUG

One feature of the 80 nt long L 5′-UTR that may influence translation of the pORF is the presence of an uAUG and a corresponding uORF that overlaps the pORF (Figure 2A). However, the L 5′-UTR is only one of four EBOV 5′-UTRs that possess uAUGs and uORFs. The VP35, VP30 and VP24 5′-UTRs also have small uORFs upstream of the pORF. Unlike L, these do not overlap the pORF (Figure 2A). In order to characterize the functional significance of these uAUGs, we replaced the uAUG codons present in the VP35, VP30, VP24, and L 5′-UTRs with UUG in the context of the GFP reporter (Figure 3A). RNA transfections were performed the same way as in Figure 2. Flow cytometry demonstrated that each uAUG suppresses GFP signals, since their ablation enhanced GFP expression in 293T cells (Figure 3B). Quantitative RT-PCR analysis of RNA isolated from the transfected 293T cells demonstrated comparable levels of GFP mRNA in each group at the time of the analysis (Figure 3C). We also performed the same experiment in DCs, which produced a GFP expression profile similar to that obtained in 293T cells (Figure 3D).

 In both 293T cells and DCs, ablation of the L 5′-UTR uAUG resulted in a 6.32 and 5.59 fold increase, respectively, in GFP signal relative to its corresponding 5′-UTR possessing a uAUG (Figure 3B and D, bars representing the L 5′-UTR data are highlighted in gray). By comparison, deleting the uAUG in the VP35, VP30, and VP24 5′-UTRs increased GFP expression between 1.75 and 3.20 fold in both 293T and DCs (Figure 3B and D). Representative histograms from 293T cells and DCs of the L 5′-UTR-GFP reporter with and without the uAUG are shown in Figure 3E and 3F. These data demonstrate that each of the uAUGs present in EBOV 5′-UTRs suppresses translation of the pORF, though the VP30 uAUG has the least dramatic effect on reporter expression. Because the uAUG of the L 5′-UTR had the most dramatic effect on pORF (GFP) translation, we chose to further characterize the L 5′-UTR.

Figure 3

EBOV uAUGs attenuate translation at primary open reading frames (pORFs).

3.4.  The L 5′-UTR uAUG suppresses translation of an L protein-encoding mRNA

In order to examine the impact of the L 5′-UTR in a more natural context, the L 5′-UTR was placed, with or without the uAUG, upstream of sequence corresponding to the first 505 amino acids (a.a.) of L followed by a C-terminal FLAG-tag (Figure 4A). This truncated version of L was used as a model transcript because of the length of the L mRNA (6783 nt long, encoding a protein of 2212 a.a.). Each construct was cloned into an expression plasmid, and equivalent amounts of each plasmid were transfected into 293T cells. Consistent with the GFP reporter data, ablation of the uAUG in the L 5′-UTR substantially enhanced the signal of the L ORF by western blot (Figure 4B). This effect was much more dramatic when L was co-transfected with the polymerase co-factor VP35 and was specific for VP35 since co-transfection with a plasmid expressing GFP did not enhance L expression (compare lanes 1 and 2 with 3 and 4). The enhancing effect of VP35 may reflect the ability of VP35 to promote L protein stability, as the functional equivalent of VP35 in other NNS viruses stabilizes L proteins [50]–[54], or it could reflect the ability of VP35 to stimulate translation through inhibition of PKR [32] (Figure 4B). These data confirm that the uAUG in the L 5′-UTR suppresses L expression in the context of its natural sequence.

Figure 4

The L 5′-UTR uAUG suppresses the translation of the first 505 amino acids of L.

3.5.  Efficiency of translation initiation at the L uAUG is determined by its sequence context

We sought to determine if the uAUG in the L 5′-UTR was accessible for translation initiation by using our mRNA reporter assay. Therefore, we placed GFP downstream of the entire L uORF sequence (Figure 5A). GFP was clearly detectable in cells transfected with the uORF-GFP reporter construct (compare the signal of mock transfected cells with cells transfected with the uORF-GFP construct in Figure 5B). The amount of GFP signal was less than that of the β-actin 5′-UTR GFP control (Figure 5B), a decrease in intensity that may be due to redistributed GFP into punctate cytoplasmic foci, as a result of the uORF-GFP fusion (data not shown). Furthermore, adding a “strong” Kozak sequence around the uAUG (A at the −3 position and a G at the +4 position, where the A of the AUG is designated as +1) increased GFP signal (Figure 5B). Finally, a construct with only the first six nucleotides of the uORF fused in frame with GFP translated GFP to the same level as the B-actin GFP control. These data indicate that the L uAUG does initiate translation.

Figure 5

Efficiency of translation initiation at L uAUG is determined by its sequence context.

3.6. A strong but not a weak uAUG Kozak sequence in the L 5′-UTR modulates pORF translation

We further examined, in the context of the full length L 5′-UTR, the effect of altering the Kozak sequence surrounding the uAUG (constructs outlined in Figure 6A). Introducing a strong Kozak sequence surrounding the uAUG suppressed GFP translation (compare GFP levels between the wildtype L 5′-UTR reporter and the uAUG SK construct in Figure 6B and RNA levels in 6C). This is consistent with data in 5B, since an increase in translation initiation at the uAUG would be expected to suppress pAUG translation and therefore decrease GFP expression (Figure 6B). In contrast, “weak” uAUG Kozak sequences did not enhance GFP signal (compare uAUG WK1 and WK2 to the wildtype L 5′-UTR), suggesting that the parental uAUG is in a weak translation initiation context. Introducing a stop codon directly after the uAUG did enhance GFP (construct labeled uAUG STOP); this likely reflects cap-dependent scanning and reinitiation after the stop codon. Finally, ablating the uAUG codon to UUG or UCG, changes expected to leave the L 5′-UTR predicted secondary structure intact (Figure S1 and Table S1), enhanced GFP expression 6–7 fold, providing further evidence that translation initiation at the uAUG regulates expression of the pORF (Figure 6B).

Figure 6

pORF translation is suppressed by a strong uAUG Kozak sequence in the L 5′-UTR, but is not affected by a weak uAUG Kozak sequence.

3.7. Position-dependent suppression of pORF translation by the L uAUG

To determine how the location of the L uAUG might affect pORF (GFP) translation, the position of the uAUG was moved from its original location (Figure 7A). Strikingly, relocating the uAUG (while preserving the Kozak consensus sequence at the −3 and +4 positions) only selectively repressed GFP expression, since only one of the four reintroduced uAUGs suppressed translation (Figures 7B and C). This indicates that the position of the L uAUG is important for its ability to regulate L translation.

Figure 7

Suppression of pORF translation by the uAUG in the L 5′-UTR is position dependent.

3.8. Levels of L modulate EBOV RNA synthesis activity

The L protein is the catalytic subunit of the EBOV RNA-dependent RNA polymerase complex that carries out viral transcription and replication [55]. To address the functional significance of modulating L protein expression, a transfection-based viral polymerase assay was used. The components of the viral polymerase complex, i.e. EBOV proteins NP, VP35, VP30 and L, were co-expressed with a minigenome consisting of a reporter gene flanked by the cis-acting sequences required for viral transcription and replication. Previous studies demonstrated that the magnitude of the reporter signal fluctuates depending on the amount of each viral co-factor titrated into this system [35], [56]–[58]. To expand on these studies, we titrated the L expression plasmid (which lacks the native 5′-UTR of L). In the absence of L plasmid there was no measurable reporter activity (Figure 8A). Small amounts of L plasmid resulted in a rapid increase in activity, but a two-fold increase in L plasmid from 400 to 800 ng dramatically reduced polymerase activity (Figure 8A). This suggests there is an optimal amount of L required for polymerase activity and that excess L can be detrimental to viral RNA synthesis.

Figure 8

A two nucleotide mutation ablating the uAUG in the EBOV L 5′-UTR attenuates virus replication.

3.9.  A recombinant EBOV lacking the L uAUG is attenuated in cell culture

To determine the impact of the L uAUG on EBOV replication, a recombinant EBOV was generated in which the uAUG was mutated to UCG. We confirmed that the AUG→UCG mutation in the L 5′-UTR enhances translation at the pORF in our established, 293T cell-based GFP reporter assay without altering predicted RNA secondary structures (see Figure 6, Figure S1, and Table S1). The genomes of both the recombinant wildtype and mutant EBOVs were sequenced and confirmed to possess no additional mutations. Figure 8B outlines the predicted EBOV L mRNA for the wildtype and the L 5′-UTR mutant virus, while Figure 8C displays the tissue culture infectious dose 50 (TCID50), the relative copy number of vRNA, and the vRNA copy number to TCID50 ratio of both the mutant and wildtype EBOVs. Figures 8D and 8E display the growth kinetics of each virus in both Vero and A549 cells after infection at a multiplicity of 0.005. The EBOV L 5′-UTR mutant displayed slowed growth kinetics compared to the wildtype virus in both Vero and A549 cells. This effect was more prominent in A549 cells where the mutant virus grew to approximately a 100-fold lower titer by day 7 post infection (Figure 8E). We further confirmed the growth defect of the L 5′-UTR mutant virus by infecting both Vero and A549 cells at a higher MOI of 0.1 (Figure S2). In both cell lines there were decreased mutant virus titers over the first 4 days in culture, but the mutant virus did eventually reach equivalent titers in both cell lines (Figure S2). The AUG→UCG codon mutation was stable as a 700 nucleotide region surrounding the L uAUG did not accumulate additional changes following nine passages in A549 cells (data not shown). That second site repressor mutations did not arise is in line with the in vitro data indicating uAUG function is position dependent (Figure 7). Therefore, sites where single nucleotide changes could introduce new uAUGs might not create effective regulators of L translation. These data demonstrate that the mutation of these two nucleotides, which lie outside of any previously described regulatory or coding sequence, significantly attenuates EBOV replication.

3.10.  The EBOV L-5′UTR uAUG mutant virus is impaired for RNA synthesis at early time points post infection

We have not been able to generate antisera that detects the native L protein (data not shown and [59]). Therefore, it has not been possible to directly assess the impact of the uAUG mutation on L protein levels. To determine how mutation of the L uAUG affects virus replication, RNA was isolated from A549 cells infected with wildtype and mutant virus at a multiplicity of 1 at 6, 12, and 24 hours post-infection and negative sense genomic RNA (vRNA) and mRNA levels were assessed by quantitative RT-PCR (Figure 9A). The primer pairs in this study (Table S2) were validated with linearized plasmids encoding each of the seven EBOV genes (Figure S3). As early as six hours post infection and at each additional time point, the vRNA levels of the EBOV mutant virus were reduced compared to wildtype EBOV (Figure 9B). This difference in RNA synthesis between the wildtype and mutant virus was also apparent for each of the seven viral mRNAs (Figures 9C–E). Furthermore, differences in mRNA levels between the wildtype and mutant virus were similar for each of the seven transcriptional units at all times post infection and their abundance indicated the presence of a transcriptional gradient, with NP mRNA being the most abundant and L mRNA being the least abundant (Figure 9C–E). These data are consistent with the data obtained with the minigenome assay (Figure 8A), in which excess L levels result in decreased viral RNA synthesis.

Figure 9

The EBOV L 5′-UTR uAUG mutant virus is impaired for RNA synthesis at early times post infection.

3.11.  The L uORF enhances L expression under conditions of cell stress

Multiple stimuli including viral infection, UV irradiation, and treatment with chemicals, such as thapsigargin (TG) can trigger cell responses that induce eIF2α∼P and a general inhibition of host cell protein synthesis [12]–[14]. For a number of cellular transcripts possessing uORFs (e.g. CHOP, ATF4), such stress conditions cause scanning ribosomes to bypass uAUGs, resulting in enhanced translation at the pORF [43], [47]. To test if the L uORF might serve to maintain cap-dependent translation initiation at the pAUG under circumstances where eIF2α∼P levels are enhanced, we designed reporter constructs modeled after ones from previous studies [43], [47]. An expression plasmid was generated with the L 5′-UTR followed by the first 13 a.a. of L in frame with firefly luciferase (denoted L-FF, Figure 10A). We also generated an identical construct without the uAUG (Lns-FF). To test these reporter constructs in the absence or presence of cell stress, we first determined that TG treatment did induce eIF2α∼P (Figure 10B). Next, 293T cells were transfected with a control Renilla luciferase plasmid and either the L-FF or Lns-FF constructs. Twenty-four hours post-transfection, 293T cells were treated with DMSO (labeled D) or with four concentrations TG to induce eIF2α∼P, which was measured at 6 hours post treatment by western blot (shown in Figure 10C). In the same experiment, cells were harvested at 10 hours post treatment, and the firefly/Renilla luciferase ratio for each group was calculated. Consistent with the GFP and western blot assays, the wildtype L 5′-UTR suppressed luciferase signal relative to the L 5′-UTR without a uAUG (Figure 10D). Furthermore, cells transfected with L-FF and treated with TG exhibited a 2-fold increase in the firefly/Renilla ratio over a DMSO control (Figure 10D). The TG-mediated maintenance of L translation was dependent on the L uAUG, since the firefly/Renilla ratio of the Lns-FF construct, which lacks the uAUG, did not have the same effect under identical treatment conditions (Figure 10D).

Figure 10

The L uAUG modulates translation of the L pORF in response to eIF2α phosphorylation in 293T cells.

3.12.  The L uAUG modulates L translation and maintains EBOV replication following thapsigargin treatment in A549 cells

To confirm the 293T cell results, an additional stress assay was performed in A549 cells (Figure 11). This assay included the ATF4 5′-UTR upstream of firefly luciferase as a positive control to measure the stress response (Figure 11B and [43]). TG treatment specifically enhanced the Firefly/Renilla ratio 2–3 fold in the L-FF group compared to untreated cells (labeled U) or DMSO treated cells (labeled D, Figure 11B). This effect was dependent on the uAUG, since the Firefly/Renilla ratio in the Lns-FF transfected samples did not exhibit the same trend. We also tested a construct where the uAUG was surrounded by the “strong” Kozak sequence, demonstrated in Figures 5 and ​and66 to enhance translation at the uAUG (Lsk-FF, Figure 11A). We predicted that a strong Kozak sequence would increase translation initiation at the uAUG, decrease ribosome bypass, and suppress translation at the pAUG. This sequence might also impair translational modulation at the pAUG in response to cell stress, consistent with studies examining the CHOP 5′-UTR [47]. Reporter gene expression from this Lsk-FF construct responded to TG treatment similarly to L-FF, suggesting that this particular Kozak sequence does not ablate the stress-responsive nature of the uAUG.

Figure 11

The L uAUG modulates L translation and maintains EBOV replication in response to eIF2α phosphorylation in A549 cells.

Finally, we sought to address the impact of the L uAUG on EBOV replication under stress conditions. A549 cells were infected with either the wildtype or 5′-UTR uAUG mutant EBOV and then treated with DMSO or with TG to induce cell stress (illustrated in Figure 11C). TG treatment decreased titers of both viruses compared to a DMSO control. However, the wildtype EBOV titer was suppressed to a lesser degree than was the mutant virus titer (labeled L 5′-UTR Mut, Figure 11D), suggesting the uAUG functions to maintain virus replication in the presence of a stress response. Taken together, both the reporter and virus infection data indicate that the L uORF suppresses translation initiation at the L pORF, but the uORF also allows levels of L translation to be maintained when eIF2α∼P increases, as might occur due to ER stress or activation of PKR during virus infection. This would allow virus replication to be maintained in the presence of a host cell innate immune response. A proposed model is illustrated in Figure 11E.

4.  Discussion

EBOV 5′-UTR sequences are quite long relative to other NNS RNA viruses. The average length of a EBOV 5′ UTR is 214 nt, compared to rabies virus (RV), Newcastle disease virus (NDV) and VSV which are 23, 59 and 21 nt respectively (Genbank: EF206716.1 and EF206716.1, and NC_001560.1). Moreover, filovirus mRNAs are strikingly similar to eukaryotic mRNAs. The average length of a eukaryotic mRNA 5′-UTR ranges from 90 to 210 nt depending on the study [60]–[62]. Furthermore, while 30–40% of the eukaryotic transcriptome contains uORFs [63], [64], none are present in VSV, RV or NDV. In contrast, four out of the seven (57%) EBOV 5′-UTRs contain a uAUG/uORF. Our study provides evidence that the 5′-UTRs of EBOV transcripts modulate translation and is consistent with a scanning model of translation initiation [65]. The presence of uORFs within these 5′-UTRs suppresses translation of pORFs, and most dramatically the translation of L. Furthermore, the L uAUG enhances L translation in response to eIF2α∼P. NNS viruses regulate their gene expression via a transcriptional gradient, where genes at the 3′ end of the negative-sense genome are transcribed more abundantly than those at the 5′ end ([3], [6] and illustrated in Figure 9). This study provides evidence for an additional mechanism by which EBOVs may regulate viral protein levels, demonstrates that an intact L uORF is critical for optimal virus replication, and suggests that the L uORF functions to maintain EBOV replication in the face of a cell stress response.

There are several studies that implicate uORFs in regulating gene expression of both DNA and positive sense RNA viruses (e.g. [66]–[69]). More recently uORFs were shown to regulate cellular protein translation in response to cell stress [12], [43], [46], [47]. While there are other examples of NNS RNA viruses that encode a uORF [70], [71], to our knowledge, our data provide the first description of a NNS RNA virus that employs a uORF to regulate viral polymerase levels and to regulate protein expression when eIF2α is phosphorylated. The data also demonstrate that a uORF exerts a positive effect on filovirus replication.

A previous study has characterized regulatory regions of the EBOV genome by inserting these into a minigenome reporter assay (each insertion included the 3′-UTR of the upstream gene, the transcription stop and start signals, and the 5′-UTR of the downstream gene) [72]. Results from these experiments determined that regulatory regions encompassing both the VP30 and L 5′-UTRs modestly suppress reporter activity. In these assays, reporter activity was dependent upon virus transcription, replication and translation of a reporter gene, in contrast to our experiments which allow for the direct assessment of each EBOV 5′-UTR on translation. Regardless of these differences, the data using the regulatory region containing the L 5′-UTR is consistent with our assays directly examining the effect of the L 5′-UTR on translation.

Functionally, the EBOV UTRs can be divided into three classes.
First are 5′-UTRs lacking uORFs which translated reporter mRNAs to levels comparable to the β-actin 5′-UTR-GFP mRNA (NP, GP, VP40, Figure 2).
Second are those, other than L, that possess uORFs. These also translated reporter mRNAs to levels comparable to the β-actin control (VP35, VP30, and VP24). Ablating each of these uAUGs also enhanced GFP expression to levels above the β -actin 5′-UTR control mRNA (Figure 2 and ​and3).3).
Why we observe an enhancement in reporter signal after mutating each uAUG will be a focus of future studies.
The third group includes only the L 5′-UTR, which strongly suppresses translation of the pORF, a suppression mediated by the L uAUG (Figures 2–7)
. Interestingly, the first four nucleotides of the transcriptional start sequences are GAUG for each EBOV 5′ UTR (with the exception of NP and L). We did not test the function of these uAUGs since prior work demonstrates that an AUG this close to the 5′ end of an mRNA does not efficiently initiate translation [73].

Our reporter assays indicate that the L uAUG initiates translation as indicated by expression of constructs where the uORF was fused in frame with GFP and is further supported by the observation that expression of such constructs is enhanced by increasing the “strength” of the Kozak sequence surrounding the uAUG (Figure 5). That the uAUG plays a critical role in regulating L pORF translation is supported by our studies demonstrating that altering the L uAUG from a weak Kozak sequence to a strong Kozak sequence further attenuates pORF (GFP) expression (Figure 6). The location of the uAUG in the L 5′-UTR is also critical for translation suppression, since only one of four constructs with relocated uAUGs represses reporter translation (Figure 7). It is interesting that the uAUG is predicted to lie at the top of a stem-loop and is possible that this positioning contributes to uAUG function (Figure S1). Future studies will address this possibility. Finally, the L uAUG maintains L translation in the presence of eIF2α∼P, when cap-dependent translation is impaired (Figure 10 and ​and11).11). It will be interesting to determine if the other EBOV mRNAs with uORFs enhance translation in the presence of eIF2α∼P.

In some respects, the L uORF resembles the arrangement of ATF4, CHOP, and GCN2 mRNAs, which also encode overlapping and/or upstream uORFs [43], [46], [47]. The arrangement of the L 5′-UTR slightly differs from the ATF4 mRNA, which has one additional upstream uORF and one overlapping uORF, but is similar to CHOP mRNA, which has a single uORF 25nt upstream of the pORF [43], [47]. In our studies, addition of TG induced expression from the L 5′ UTR construct by 2–3 fold, although in infected cells where L and VP35 are co-expressed, the differences may well be greater (see Figure 4). Nonetheless, experiments with ATF4 and CHOP 5′-UTRs enhanced protein expression comparably ([43], [47] and Figure 11). It is worth noting that ATF4 protein levels are very low in the absence of cell stress. In contrast, some expression of the EBOV L protein must be maintained to sustain virus replication. Therefore, it is likely that the uORF arrangement of the EBOV L mRNA provides a mechanism to keep translation of L low while allowing its upregulation in the presence of eIF2α∼P. This would effectively maintain L expression under cell stress conditions. Also, at four different doses of TG, we observed a similar translational maintenance, consistent with previous ATF4 mRNA studies [43]. Therefore, we propose that the L uORF modulates L translation by a similar mechanism (modeled in Figure 11E). During conditions when eIF2-GTP is plentiful, translation initiates more frequently at the L uAUG. Stress induced eIF2α∼P reduces eIF2-GTP levels and the efficiency of translation initiation. Ribosomal subunits therefore scan past the L uAUG to the pAUG at a higher frequency, thereby maintaining L translation.

Experiments with the 5′-UTR of CHOP mRNA indicate that the Kozak sequence governs the ability of a ribosome to bypass the uAUG during a stress response. The CHOP uAUG is surrounded by a weak Kozak sequence, and a change to a strong Kozak context diminishes the effect of the uAUG on pAUG translation during a stress response. Like CHOP, the L uAUG is located within a weak Kozak sequence. However, the L uAUG surrounded by a strong Kozak sequence was still able to modulate translation at the pAUG during a stress response (Figure 11). Therefore, the role of the Kozak sequence surrounding the EBOV L uAUG requires further investigation.

Maintaining translation of L, the only viral protein with enzymatic activity, may significantly impact virus transcription/replication in cells that have begun to repress cap-dependent translation. To this point, our studies clearly demonstrate the uAUG is critical to maintain virus titers in the presence of cell stress, since a uAUG mutant virus was more sensitive to TG treatment (Figure 11D). It is possible that the uORFs in the VP35, VP30 and VP24 mRNAs serve a similar purpose. Enhanced expression of VP35 and VP24 could benefit the virus because these proteins counter innate immune responses, while VP35 and VP30, like L, are required for viral RNA synthesis ([23], [29] and reviewed in [74]).

Virus infection triggers IFN-α/β production which induces expression of PKR, a protein that is activated by viral dsRNA and phosphorylates eIF-2α to inhibit cap-dependent translation [15], [16]. Relevant to our study are experiments that examined eIF2α∼P following VSV infection, the prototype NNS RNA virus [18]–[21]. VSV preferentially translates its own mRNAs over cellular mRNAs before triggering eIF2α∼P and a global inhibition of host cell protein synthesis [18]. Furthermore, it appears that VSV mRNAs contain cis-acting elements that enhance translation efficiency, though is it not clear what these elements are [20], [21].

Distinct from VSV infection, studies with EBOV indicate that it does not globally inhibit host cell protein synthesis [19]. Furthermore, EBOV infection suppressed PKR∼P in HEK293 cells [32]. In a different study, EBOV infection induced eIF2α∼P and PKR∼P in persistently infected mouse cells [34]. It was proposed that a persistent state might allow maintenance of these zoonotic pathogens in their reservoir hosts (presumably select bat species). Notably, inhibiting eIF2α and PKR∼P reactivated virus replication [34]. These observations highlight the fact that eIF2α∼P can have a significant outcome on EBOV replication in cell culture. However, the specific mechanisms by which levels of eIF2α∼P modulate EBOV persistence in vitro remain to be defined. The regulation of L translation by its 5′-UTR in response to eIF2α∼P suggests that EBOV encodes mechanisms to respond to cell stress and provides one potential explanation for such observations.

Regulating EBOV L levels may provide an important balance during viral replication, as shown in the EBOV minireplicon polymerase assays and in the recombinant EBOV mutant virus lacking the uAUG in the L 5′-UTR. Our EBOV minireplicon data agrees with previous work in 293T cells where increasing L while maintaining VP35, VP30 and NP at specific rations could impair polymerase activity [58]. Another study demonstrated that low amounts of L were capable of driving polymerase expression, though this activity did not diminish with increasing amounts of L [35]. The latter system used a recombinant vaccinia virus expressing T7 RNA polymerase in HeLa cells, while our T7 polymerase is expressed from a plasmid in 293T cells. These experimental differences may account for these apparently discrepant results. Regardless, all of this data indicate that changes in L expression outside of a specific range may significantly alter viral replication.

That L expression levels must be tightly regulated is consistent with the data obtained with the EBOV L uAUG mutant virus, which had reduced replication in both Vero and A549 cells. While the L uAUG mutant virus was able to reach similar titers to the wildtype virus by day 7 post infection in Vero cells, the difference in growth was more pronounced in A549 cells where the mutant virus never reached equivalent titers to that of wildtype EBOV. One explanation for the enhanced growth defect in A549 cells is provided by the data in Figure 9, where there is a clear delay in virus transcription and replication (indicated by differences in virus mRNA and vRNA levels). While we do not have an antibody to detect full length L, our transfection studies predict that without the uORF, L protein expression will be increased under basal conditions and will not be properly regulated under conditions of cell stress.

Translation initiation at the uORFs in the L, VP30 and VP24 mRNAs would result in the translation of small peptides in EBOV infected cells. The L uORF amino acid sequence is conserved among Zaire EBOV strains, but the sequence is not conserved between different filovirus species. However, L mRNAs from multiple filoviruses do possess uORFs. For example, the Reston EBOV L mRNA (AY769362.1) possesses an overlapping uORF of 24 a.a., and the Sudan EBOV has a uORF that terminates just 27nt upstream of the pORF (NC_006432.1). Sequence analysis from Marburg virus reveals the L mRNA of the Ravn strain possesses two uORFs in its 5′-UTR (EU500827.1) while the Angola strain has four uORFs (DQ447659). It is likely these other uORFs are translated into small peptides in infected cells, and it is possible that these peptides may perform a specific function(s). In Drosophila, small peptides derived from a polycistronic mRNA are required for proper development, since ablating these ORFs disrupts actin-based cell morphogenesis [75]. Furthermore, nascent uORF peptides of fungi and yeast can interact with the ribosome during their translation to inhibit translation at the pORF [76], [77].

Given that the mutation of the L uAUG significantly affects virus replication in cell culture, it will be of interest to determine whether the functions of the EBOV 5′-UTRs described in this report influence the outcome of infection in vivo. If so, it is possible that these unique functions may prove useful as targets for new therapeutic strategies. The EBOV 5′-UTRs may represent potential targets of antiviral therapy, since antisense RNA oligomers targeted against flavivirus and coronavirus 5′-UTRs have successfully inhibited virus replication by impairing translation [78], [79]. In addition, studies with antisense oligomers targeting the pAUGs of EBOV VP35, VP24, and L block translation in vitro and provide protection in animal models [80]. Our studies suggest that targeting additional regions of the mRNA, such as the uAUGs/uORFs in addition to the pAUG may further improve the efficacy of these treatments.

5.  Materials and Methods

5.1. Biosafety and containment

Experiments with live recombinant Ebola viruses were performed in BSL-4 containment at the Rocky Mountain Laboratories (RML), Division of Intramural Research (DIR), National Institute of Allergy and Infectious Diseases (NIAID), National Institutes of Health (NIH), USA following Standard Operating Procedures and approval by the Institutional Biosafety Committee.

5.2.  DNA constructs generated in this study

A bicistronic reporter construct was generated in the plasmid pCAGGS [81] and cloned between EcoRI and BglII sites, organized as follows: EcoRI-firefly luciferase-KpnI-Sac I-EcoRV-NheI-Renilla luciferase-BglII. Templates for the firefly and Renilla luciferase were obtained from the plasmids pgl4.20 and pRLTK (Promega). The EMCV IRES was obtained from the pCITE-4a(+)-GFP plasmid (Novagen). Each of the EBOV 5′-UTRs (synthesized based on sequences from the strain Mayinga (AY142960.1)) were introduced in the multiple cloning site (MCS) between the firefly and Renilla luciferase sequences. GFP reporter mRNAs cloned into pGEMT (Promega) downstream of either a EBOV 5′-UTR or a β-actin 5′-UTR [82] were organized as follows: T7 promoter-5′UTR-SacI-GFP-FLAG. To accommodate the overlapping L uORF with the GFP ORF, the L 5′-UTR was cloned in the same manner as the other EBOV 5′-UTRs, between the T7 promoter and the SacI restriction site. The resulting construct preserved the nucleotides coding for the first 11 amino acids of the L uORF. Nucleotides coding for the C-terminal part of the uORF differed, as they were derived from both the SacI and GFP sequence.

An expression plasmid encoding L amino acids 1–505 was cloned into pCAGGS as follows: SacI-L 5′UTR-L, amino acids 1 to 505-FLAG-XhoI. This construct was also generated without the L uAUG (changed to UUG) in its 5′-UTR. An expression plasmid of L fused to firefly luciferase was constructed as: SacI-L 5′UTR-L, amino acids 1 to 13-firefly luciferase-XhoI.

5.3. Cells

293T, VeroE6 and A549 cells were maintained in Dulbecco's minimal essential medium with 10% fetal bovine serum and supplemented with L-glutamine and penicillin/streptomycin. To generate monocyte-derived human dendritic cells, buffy coats of anonymous healthy donors were obtained from the New York Blood Center (Long Island, NY) under approved protocols. CD14+ monocytes were isolated from buffy coats (MiltenyiBiotec) and differentiated for 7 days by culturing the cells in RPMI-1640 media supplemented with penicillin, streptomycin, 55 mM β-mercaptoethanol, 4% human serum AB (GemCell, Gemini Bio-Products, West Sacramento, CA), 500 U/ml human granulocyte-macrophage colony-stimulating factor (GM-CSF; Peprotech, Rocky Hill, NJ) and 500 U/ml human interleukin-4 (IL-4; Peprotech) [83].

5.4.  In vitro transcription of mRNAs encoding reporter genes

Each T7-5′UTR-GFP-FLAG reporter in pGEMT is flanked by NotI restriction sites and was excised by a NotI digest. Equivalent nanograms of each DNA template were used for T7 in vitro transcription (Ambion, Cat #AM1345). Each transcription reaction was DNase I treated to remove input template, polyadenylated, purified and resuspended in water according to the manufacturer's instructions. Each RNA sample was quantified, and equivalent nanogram amounts were reverse transcribed using random hexamer primers (Qiagen, Cat# 205111). Each cDNA was then subjected to real time quantitative PCR with primers specific for GFP (Bio-Rad C1000 Thermal Cycler). In addition, the quality of the RNA was analyzed by agarose gel electrophoresis to ensure a single product of the correct size. Both 293T cells and dendritic cells were transfected using Lipofectamine 2000 (Invitrogen) with either equal copy numbers of mRNA (determined by real time PCR) or equal nanograms of mRNA (both methods produced similar results). Cells were analyzed for GFP expression by flow cytometry and the mean fluorescence intensity of the GFP positive cells was determined for each group. Also total RNA was isolated from cells (Qiagen, Cat# 74104), and levels of GFP mRNA were determined by real time RT-PCR from the same cells subject to FACS analysis. GFP signal was normalized to either 18S ribosomal RNA or β-actin mRNA using primers previously described [84].

5.5. Western blots to measure levels of FLAG-tagged proteins

To measure the levels of pCAGGS L 1–505 with a C-terminal FLAG-tag, 293T cells were transfected with pCAGGS-GFP-FLAG, pCAGGS-VP35-FLAG, or pCAGGS L 1–505-FLAG by using Lipofectamine 2000 (Invitrogen). At 24 hours post transfection, cells were harvested, washed in phosphate-buffered saline (PBS) and lysed in NP-40 lysis buffer (50 mMTris [pH 7.5], 280 mM NaCl, 0.5% NP-40, 0.2 mM EDTA, 2 mM EGTA, 10% glycerol, and protease inhibitors [Complete; Roche]). Lysates were incubated on ice for 30 min, centrifuged for 10 min at 4°C in a microcentrifuge, and the supernatants collected. Samples were subjected to polyacrylamide gel electrophoresis and then transferred to a polyvinylidenedifluoride membrane. The membrane was blocked in 5% nonfat dry milk, 0.1% Tween 20 in PBS, and then probed with a monoclonal mouse M2 α-Flag primary antibody and a goat α-mouse secondary antibody (Sigma). Membranes were developed using a Western Lightning ECL kit (Perkin-Elmer) and BioMax film (Kodak).

5.6.  Thapsigargin treatment and dual luciferase assays

pCAGGS plasmids expressing the first 13 amino acids of L fused to firefly luciferase both with and without the uAUG were transfected into 293T or A549 cells. As a transfection and experimental control, pRLTK (Promega) expressing Renilla luciferase was also transfected. At 24 hours post transfection, cells were treated with thapsigargin (TG, Sigma, Cat# T9033) and then harvested at the indicated hours post treatment for a dual luciferase assay (Promega, Cat # E1960). The firefly/Renilla luciferase ratio was then determined for each group. Experiments were designed based on published studies [43], [47]. To measure the level of TG-induced eIF2-α phosphorylation, lysates generated during the dual luciferase assay were subjected to western blot analysis using a phosphospecific anti-eIF2α antibody (Invitrogen, Cat# 44728G) and an antibody for total eIF2α (Cell Signaling, Cat# 9722).

5.7.  EBOV transcription/replication assays

The plasmids used in the EBOV transcription/replication assays were described previously [57], [85]. The coding sequences of L and the other viral proteins were cloned into pTM1 (no virus-derived UTRs were present).

5.8.  EBOV rescues and infections

A cDNA copy of the full length genome of EBOV (strain Mayinga) flanked by a T7 promoter and a hepatitis delta ribozyme and T7 terminator was cloned into pAmp [86]. For cloning purposes and to serve as genetic markers 4 nucleotides within the NP (c2149g, all positions correspond to the viral genome), VP24 (a11043g) and L (c13194g, c15639g) ORFs were silently mutated, and the resulting plasmid was designate pAmp-rgEBOV. Virus rescued from this plasmid showed identical growth kinetics to a recombinant EBOV without these mutations. To generate a cDNA clone for the mutant virus, a subgenomic fragment of the genome was subcloned into pKan, the L uAUG mutated (a11547t, t11548c), and cloned back into pAmp (pAmp-rgEBOV-Mut). Both wildtype rgEBOV and mutant rgEBOV-Mut were rescued in VeroE6 cells as previously described [86]. Briefly, 50% confluent VeroE6 cells were transfected using Transit LT1 (Mirus, cat #MIR 2300) according to the manufacturer's instructions with the following plasmids: 125 ng pCAGGS-NP, 125 ng pCAGGS-VP35, 75 ng pCAGGS-VP30, 1000 ng pCAGGS-L, 250 ng pCAGGS-T7, 250 ng full-length plasmid. 24 hours post transfection the medium was exchanged, and after 7 days supernatant was transferred onto fresh VeroE6 cells. Upon development of cytopathic effect (after 7–14 days) supernatant from these cells was clarified and stocks frozen in liquid nitrogen. RNA from these stocks was isolated and the entire genome was sequenced to ensure there were no unwanted mutations. For virus growth curves, both Vero and A549 cells were infected with each virus at a MOI of 0.005 and supernatant was harvested each day for 7 days. Virus titers were measured by tissue culture infectious dose 50 in VeroE6 cells. To measure viral RNA levels, RNA from infected A549 cells (MOI of 1) was isolated at 6, 12 and 24 hours post infection. To produce cDNA specific for genomic (negative sense) RNA, total RNA was reverse transcribed in independent reactions with six primers, each complementary to the negative sense genomic RNA (Invitrogen, cat #18080-051). To produce cDNA specific for messenger RNA, mRNA was first isolated from total RNA (Invitrogen, cat# 610.06) and the mRNA fraction was reverse transcribed. Real time PCR with validated primer pairs specific to the EBOV genome were developed to quantify the relative amounts of each RNA species. Sequences of the primer pairs are listed in Table S2 and standard curves generated with these primers off of DNA plasmids corresponding to each EBOV gene are displayed in Figure S3.

6. Supporting Information

Figure S1

RNA secondary structure in the L 5′-UTR is not significantly altered with the uAUG→uUUG or uUCG codon mutations. Secondary structure analysis of uORF sequences shows minimum impact of uAUG mutants. (A) Wildtype (B) mut1 (UCG) and (C) mut2 (UUG) sequences show similar minimum free energy (MFE) secondary structures. Base pairing probabilities for each of the sequences are shown on the right. The top triangle of the box matrix dot plot represents the ensemble structures, with the size of the box within the matrix corresponding to the relative probability of forming a base pair within a given secondary structure in the ensemble. The lower triangle represents the base pairing of the MFE secondary structure. Sequence corresponding to AUG, UCG and UUG, residues mutated within the uAUG sequence are highlighted by light green, cyan, and pink color, respectively.

(EPS)

Click here for additional data file.^{(1.6M, eps)}

Figure S2

Growth kinetics of WT EBOV and the L 5′-UTR uAUG mutant EBOV at a multiplicity of infection of 0.1. A. Vero cells were infected in triplicate with both recombinant viruses at an MOI of 0.1. B. A549 cells were infected with both recombinant viruses at an MOI of 0.1. Each day, supernatant was harvested and TCID50 titers were determined on Vero cells. Each bar represents the means of triplicate samples.

(EPS)

Click here for additional data file.^{(828K, eps)}

Figure S3

Primer pairs for PCR amplification of each of the EBOV genes exhibit similar amplification efficiencies. Primers specific for each of the seven EBOV transcriptional units were designed and validated on linearized DNA plasmids encoding each of the seven genes. Plasmids were normalized for absolute copy number and each was diluted in serial 10-fold steps. An aliquot of each dilution was used for quantitative PCR. The cycle threshold (CT) number is plotted on the Y-axis while the plasmid copy number is plotted on the Y-axis. Primer efficiencies of each of the seven primer pairs were determined to be over 95%.

(EPS)

Click here for additional data file.^{(674K, eps)}

Table S1

A summary of the results obtained for the computational secondary structure analysis. Low ensemble diversity and good correspondence in the between the MFE free energy and ensemble free energy for all three structures suggest a high confidence for the proposed secondary structures. Of note, all three structures have similar values and computational studies suggest a low probability of impact on the secondary structure due to mutations near the uAUG.

(DOCX)

Click here for additional data file.^{(14K, docx)}

Table S2

Primer sequences used in this study.

(DOCX)

Click here for additional data file.^{(14K, docx)}

Primer name	Sequence (5' to 3')
*NP2034f	CAGTGCGCCACTCACGGACA
NP2106r	TGGTGTCAGCATGCGAGGGC
*VP35 122f	GGCCATACTGCGGCCACGAC
VP35 312r	TGACTGTTGCGCGTCTTCGGG
*VP40 514f	TCCCGGATCATCCCCTCAGGC
VP40 655r	GCAGCAGGCAGTGGTTGGGT
*GP1928f	GGGGCGGCACATGCCACATT
GP2056r	CCCCCTGGTCCGGAAGGGTT
*VP30 579f	GCACCCAAGGACTCGCGCTT
VP30 687r	TCGCCCAGTGTTCTGCCGTC
*VP24 141f	TCGCCCCTGAGATACGCCACA
VP24 338r	AGGGCGCTCAAAGTGATGTTCGT
*L3031f	TGCGCCAGATTGTACGCAGGA
L3201r	CGCTCGGCGTGCGTGAAAAG
GFP542f	ACCACTACCAGCAGAACACC
GFP744r	TTACTTATCGTCGTCATCCTTGT
GFP476f	AGAACGGCATCAAGGTGAAC
GFP612r	GGTGCTCAGGTAGTGGTTGTC
* Primers used to generate cDNA to negative sense genomic RNA

7. Acknowledgments

We would like to thank Dr. Osvaldo Martinez and Benjamin Yen for preparing human monocyte derived dendritic cells and Ariel Endlich-Frazier for technical assistance. We would like to thank Dr. Ana Fernandez-Sesma for access to her real time PCR machine. Dr. Ian Mohr (New York University) provided helpful insight for experimental design.

8. Funding Statement

This work is supported by National Institutes of Health grants [AI059536, U54 AI 057158] (Northeast Biodefense Center-Lipkin) to CFB, [5F32AI084453] to RSS, and [AI081914] to GKA. This research was supported in part by the Intramural Research Program of the NIH, NIAID. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

9. Article information

PLoS Pathog. Jan 2013; 9(1): e1003147.

Published online Jan 31, 2013. doi:  10.1371/journal.ppat.1003147

PMCID: PMC3561295

Reed S. Shabman,¹ Thomas Hoenen,² Allison Groseth,² Omar Jabado,³ Jennifer M. Binning,^4,5 Gaya K. Amarasinghe,⁴ Heinz Feldmann,² and Christopher F. Basler^1,*

Sean P. J. Whelan, Editor

¹Department of Microbiology, Mount Sinai School of Medicine, New York, New York, United States of America

²Laboratory of Virology, Division of Intramural Research, National Institute of Allergy and Infectious Diseases, National Institutes of Health, Rocky Mountain Laboratories, Hamilton, Montana, United States of America

³Department of Genetics and Genomic Sciences, Mount Sinai School of Medicine, New York, New York, United States of America

⁴Department of Pathology and Immunology, Washington University School of Medicine, St. Louis, Missouri, United States of America

⁵Biochemistry Graduate Program, Iowa State University, Ames, Iowa, United States of America

Harvard Medical School, United States of America

* E-mail: ude.mssm@relsab.sirhc

The authors have declared that no competing interests exist.

Conceived and designed the experiments: RSS TH GKA OJ CFB. Performed the experiments: RSS TH AG JMB GKA. Analyzed the data: RSS TH CFB OJ GKA HF. Contributed reagents/materials/analysis tools: CFB HF OJ GKA. Wrote the paper: RSS TH AG GKA HF CFB.

Received April 25, 2012; Accepted December 6, 2012.

Copyright notice

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

This article has been cited by other articles in PMC.

Articles from PLoS Pathogens are provided here courtesy of Public Library of Science

10.  References

1. Feldmann H, Geisbert TW (2011) Ebola haemorrhagic fever. The Lancet 377: 849–862 [PMC free article] [PubMed]

2. Bray M (2003) Defense against filoviruses used as biological weapons. Antiviral Research 57: 53–60 [PubMed]

3. Feldmann HME, Randolf A, Will C, Kiley MP, Sanchez A, et al. (1992) Marburg virus, a filovirus: messenger RNAs, gene order, and regulatory elements of the replication cycle. Virus Res 24: 1–19 [PubMed]

4. Iverson LE, Rose JK (1981) Localized attenuation and discontinuous synthesis during vesicular stomatitis virus transcription. Cell 23: 477–484 [PubMed]

5. Mühlberger E, Trommer S, Funke C, Volchkov V, Klenk H-D, et al. (1996) Termini of All mRNA Species of Marburg Virus: Sequence and Secondary Structure. Virology 223: 376–380 [PubMed]

6. Sanchez AKM (1987) Identification and analysis of Ebola virus messenger RNA. Virology 157: 414–420 [PubMed]

7. Ferron F, Longhi S, Henrissat B, Canard B (2002) Viral RNA-polymerases - a predicted 2′-O-ribose methyltransferase domain shared by all Mononegavirales. Trends in Biochemical Sciences 27: 222–224 [PubMed]

8. Weik M, Modrof J, Klenk H-D, Becker S, Muhlberger E (2002) Ebola Virus VP30-Mediated Transcription Is Regulated by RNA Secondary Structure Formation. J Virol 76: 8532–8539 [PMC free article] [PubMed]

9. Komarova AV, Haenni A-L, Ramírez BC (2009) Chapter 3 Virus Versus Host Cell Translation: Love and Hate Stories. In: Advances in Virus Research. Murphy KMAJSFA, editor. Volume 73. Amsterdam: Academic Press/Elsevier. pp. 99–170. [PubMed]

10. Walsh D, Mohr I (2011) Viral subversion of the host protein synthesis machinery. Nat Rev Micro 9: 860–875 [PubMed]

11. Hinnebusch AG (2000) Mechanism and regulation of initiator methional-tRNA binding to ribosomes. In: Translational Control of Gene Expression.; Sonnenberg N, Hershey JWB, Mathews MB, editors. Cold Spring Harbor, NY: Cold Spring Harbor Laboratory Press.

12. Wek RC, Jiang HY, Anthony TG (2006) Coping with stress: eIF2 kinases and translational control. Biochem Soc Trans 34: 7–11 [PubMed]

13. Mounir Z, Krishnamoorthy JL, Wang S, Papadopoulou B, Campbell S, et al. (2011) Akt Determines Cell Fate Through Inhibition of the PERK-eIF2{alpha} Phosphorylation Pathway. Sci Signal 4 (192) ra62. [PMC free article] [PubMed]

14. Schmitt E, Naveau M, Mechulam Y (2010) Eukaryotic and archaeal translation initiation factor 2: A heterotrimeric tRNA carrier. FEBS Letters 584: 405–412 [PubMed]

15. Meurs EF, Watanabe Y, Kadereit S, Barber GN, Katze MG, et al. (1992) Constitutive expression of human double-stranded RNA-activated p68 kinase in murine cells mediates phosphorylation of eukaryotic initiation factor 2 and partial resistance to encephalomyocarditis virus growth. J Virol 66: 5805–5814 [PMC free article] [PubMed]

16. Sen GC (2001) VIRUSES AND INTERFERONS. Annual Review of Microbiology 55: 255–281 [PubMed]

17. Stoneley MST, Le Quesne JP, Coldwell MJ, Jopling CL, Belsham GJ, et al. (2000) Analysis of the c-myc IRES; a potential role for cell-type specific trans-acting factors and the nuclear compartment. Nucleic Acids Research 28: 687–694 [PMC free article] [PubMed]

18. Connor JH, Lyles DS (2005) Inhibition of Host and Viral Translation during Vesicular Stomatitis Virus Infection. Journal of Biological Chemistry 280: 13512–13519 [PubMed]

19. Elliott LH, Kiley MP, McCormick JB (1985) Descriptive analysis of Ebola virus proteins. Virology 147: 169–176 [PubMed]

20. Whitlow ZW, Connor JH, Lyles DS (2006) Preferential Translation of Vesicular Stomatitis Virus mRNAs Is Conferred by Transcription from the Viral Genome. J Virol 80: 11733–11742 [PMC free article] [PubMed]

21. Whitlow ZW, Connor JH, Lyles DS (2008) New mRNAs Are Preferentially Translated during Vesicular Stomatitis Virus Infection. J Virol 82: 2286–2294 [PMC free article] [PubMed]

22. Basler CF, Mikulasova A, Martinez-Sobrido L, Paragas J, Muhlberger E, et al. (2003) The Ebola Virus VP35 Protein Inhibits Activation of Interferon Regulatory Factor 3. J Virol 77: 7945–7956 [PMC free article] [PubMed]

23. Basler CF, Wang X, Mühlberger E, Volchkov V, Paragas J, et al. (2000) The Ebola virus VP35 protein functions as a type I IFN antagonist. Proceedings of the National Academy of Sciences of the United States of America 97: 12289–12294 [PMC free article] [PubMed]

24. Cardenas WB, Loo Y-M, Gale M Jr, Hartman AL, Kimberlin CR, et al. (2006) Ebola Virus VP35 Protein Binds Double-Stranded RNA and Inhibits Alpha/Beta Interferon Production Induced by RIG-I Signaling. J Virol 80: 5168–5178
